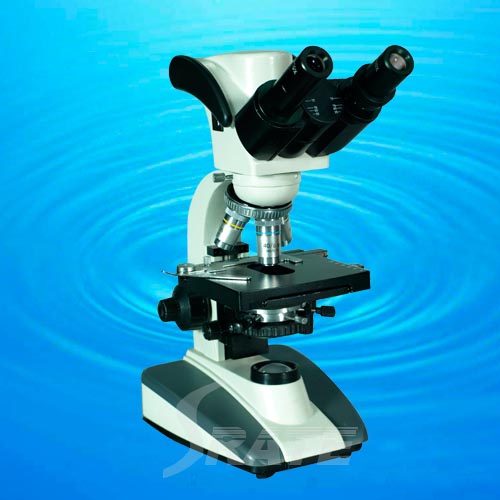

Model : TXS07-01DN

---

Specifications:

1) 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

2) Wide Field Plane-Scope Eyepiece: WF10X;

3_ Total Magnification: 40X-1000X

4) Articulated Free Binocular Head, Interpupillary Distance: 55-75mm; 30 degree Inclined, 360  degree Rotatable

5) Build-in Digital Camera System, Resolution: 1280(H)*1024(V)/ 2048(H)*1536(V) , 1/2" Chip, USB2.0, with Micro-image Process Software

6) Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

7) 2-30mm Iris Diaphragm And 32 Filter; ABBE Condenser: N.A. 1.25

8) Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm

9) Built-in Adjustable Brightness Halogen Lamp 6V/20W



Packing:

4 Sets/Carton 69X45X47cm

Gross Weight/Carton 20kg
