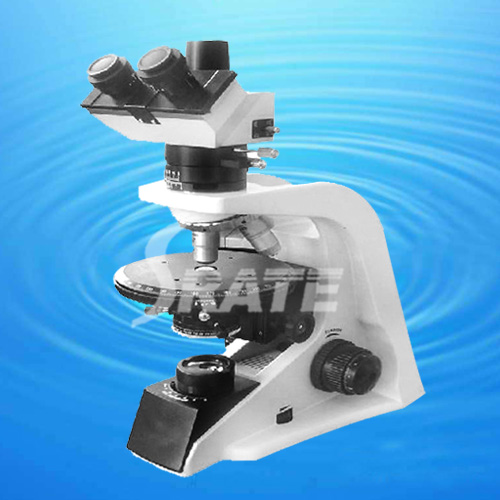

Model : TXS108-01B

---

Specifications:

Polarizing Microscope is adequate for geology, minerals,metallurgy section and some colleges and universities. Recently, with the advanced technology. The Polarizing Microscope, as the optical instrument, it is more and more preva lent

Infinity System Strain free Plane-scope Achromatic Objective 5X,10X,40X

Wide Field Plane-Scope Eyepiece WF10X/18 with scale of Crosshair and 0.1mm and Wide Field Plane-Scope Eyepiece WF10X/18;

Total Magnification:40X-630(or 50-400X);

Articulated Free Trinocular Head,Interpupillary Distance:55-75mm;

30º Inclined,360º Rotatable;

The Adjustable Height range of the vertical Tube:30mm;

Revoving Round Stage:Ø160mm.360ºRotatable and Graduated 1ºIncrements,Minimum Resolution 6’When Using Venire Scale Center Adjustable;

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter;Coaxial Coarse And Fine Focusing Adjustable;

ABBE Condenser:N.A.1.25;

Coaxial Coarse And Fine Focusing Adjustable Mechanism:35mm,Precision:0.002mm;



Packings:

Meas:42X28X57cm

1set/CTN

GW:13KGS

NW:10KGS
