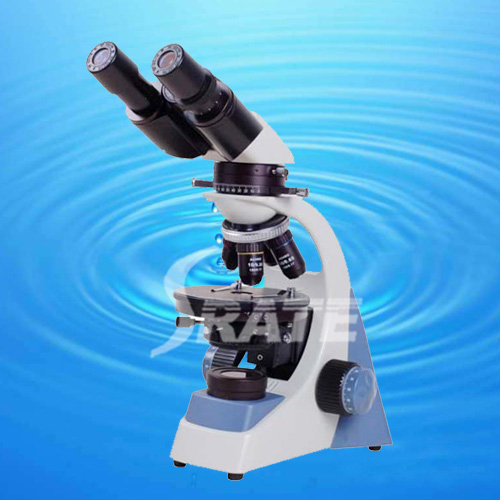

Model : TXS107-01B

---

Specifications:

Polarizing Microscope is adequate for geology, minerals,metallurgy section and some colleges and universities. Recently, with the advanced technology. The Polarizing Microscope, as the optical instrument, it is more and more preva lent

45mm DIN Achromatic Objective:4X,10X,40X(S),100X(S, Oil)

Wide Field Plane-Scope Eyepiece:WF10X

Total Magnification:40X-1000X

Articulated Free Binocular Head,Interpupillary Distance:55-75mm,30º Inclined,360º Rotatable

Revolving Round Stage:Ø160mm;

360ºRotatable and Graduated 1ºIncrements,Minimum Resolution 6’

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter, ABBE Condenser:N.A.1.25

Coaxial Coarse And Fine Focusing Adjustable; Mechanism:14mm,Precision:0.01mm

Rotatable Analyzer with Graduation 0º-90º,Sliding out of Optical Path

Optical Compensator: Slip(first class red),1/4λSlip

Polarize: On the light collector, 360º Rotatable

Built-in Adjustable Brightness LED Lamp 1W



Packings:

2sets/ctn  Meas.:44X37X47cm

GW:10kg

NW:8kgs

Foam packings +Paper carton( or Wooden box packings)
