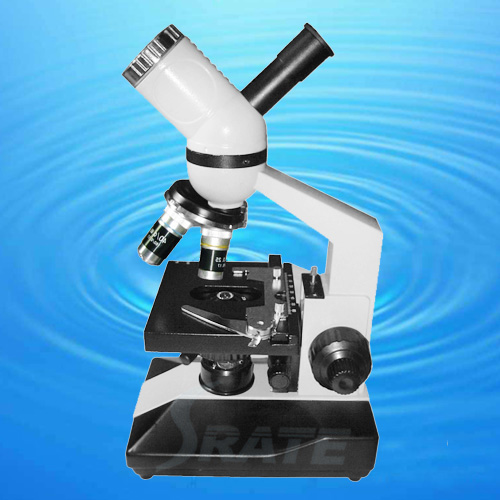

Model : TXS03-01E-1DN

---

Specifications:

Achromatic Objective: 4X, 10X, 40X(S),100X(S,Oil)

Plane-Scope Eyepiece: WF10X

Total Magnification: 40X - 1000X

Monocular Head, 45° Inclined, 360° Rotatable

Plain Stage with Paired Clips: 90X90mm

Single Lens Condenser: N.A. 0.65

Six-stop Dial Diaphragm

Coarse Focusing Adjustable Mechanism: 8mm;

Built-in Incandescent Lamp 15W (or LED)

Built-in Digital Camera System,

Resolution: 1280(H)*1024(V)(1.30MP)/ 2048(H)*1536(V)(3.0MP), 1/2Chip, USB2.0 with Micro-image Process Software



Packings

10 Sets/Carton  81X45X36cm

Gross Weight/Carton: 22kg



1:The build-in digital photography system

It is a brand-new micro imagery systemcontains a USB2.0 colour digital camera which has 1.3MP pixel,it can enable you to obtain any fine information of the micro-image.

2: Image processing system with the aid of the computer,the soft ware could finish the image's previewing,saving,deleting,comparing,measuring,counting and other functions

3: The model of image output

The pure digital signal will be real-time and high resolution previewed in the computer through USB 2.0.Displaying 1280(H)*1024(V)(1.30MP)/ 2048(H)*1536(V)(3.0MP), makes full screen clear image with high resolution,the picture will be saved  as BMP or JPG files..
