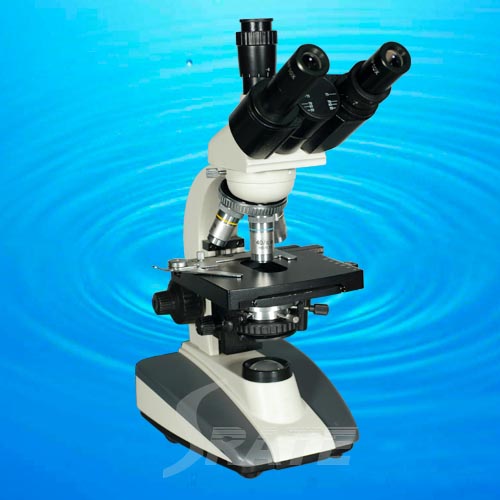

Model : TXS07-01C

---

Specification:

45mm Aechromatic Objective: 4X, 10X, 40X (S), 100X (S, oil)

Wide Field Plano-Scope eyepiece: WF10X

Ariculated Free Trinocular Head, 30° Inclined, 360° Rotatable

The Vertical Tube is used for Second Viewing or Connecting with Camera

Total Manification: 40X-1000X

Double Layers Mechanical Stage 125X130mm, Moving Range X-Y: 30X60mm

Ø2-Ø3mm Iris Ddiaphragm and Filter

ABBE condenser: N.A.1.25

Coaxial Coarse and Fine Focusing Adjustable Mechanism: 20mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W

Model Txs07-01ca: With CCD Can Connected With Monitor or TV

Model Txs 07-01cb: With Digital Eyepiece Can Connected With Computer Through USB Port



Packings:

Net Weight/Set: 6.8kg

Package: 1 Set/Carton 42X31X52cm

Gross Weight/Carton: 9.3kg
