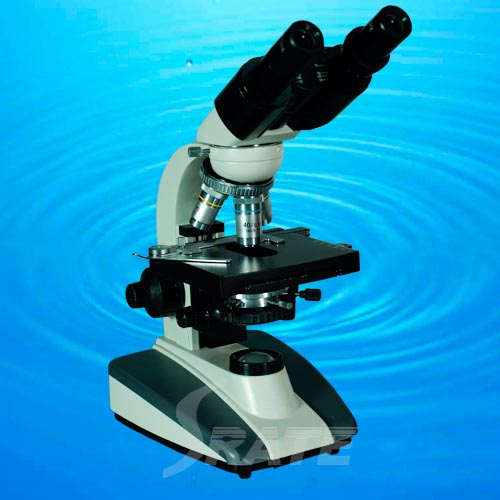

Model : TXS07-01B

---

Specifications

eyepiece Wide Field Plane-Scope Eyepiece: WF10X,

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification 40X-1000X

viewing head Articulated Free Binocular Head, Interpupillary Distance: 55-75mm; 30° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent, or LED)

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm



Packings

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 4.3kg

Package: 4 Sets/Carton 69X45X47cm
