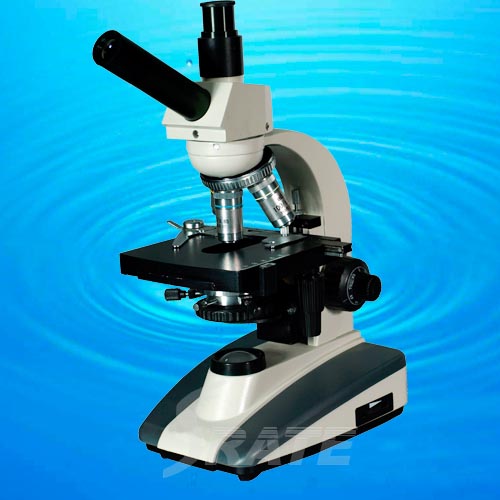

Model : TXS07-01V

---

Specifications:

eyepiece Wide Field Plane-Scope Eyepiece:WF10X

objectives 45mm Achromatic Objective:4X,10X,40X(S),100X(S,Oil)

Magnification 40X-1000X

viewing head Dual Observation Head, 30° Inclined And Vertical, 360°Rotatable

nosepiece quardruple nosepiece

stage Double Layers Mechanical Stage: 125X130mm, MovingRange X-Y: 30X60mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W (or Incandescent, or Fluorescent, or LED)

focusing Focusing: Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm



Packings:

inner packing Foamed Plastic + Inner Carton

outer packing Net Weight/Set 3.8kgs

Package: 4 Sets/Carton 69X45X47cm

GrossWeight/Carton: 18kgs
