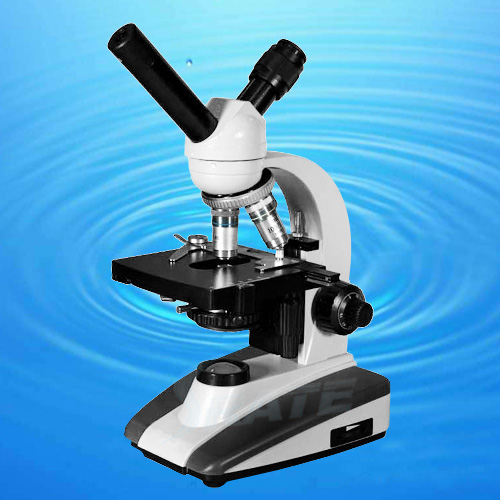

Model : TXS07-01S

---

Specifications

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm Achromatic Objective: 4X,10X,40X(S),100X(S,Oil)

Magnification 40X-1000X

viewing head Dual Observation Head, 45° Inclined,360° Rotatable

nosepiece quardruple nosepiece

stage Double Layers Mechanical Stage: 125X130mm, MovingRange X-Y: 30X60mm ,Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser:N.A.1.25

illumination Illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent, or LED)

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm



Packings

inner packing Foamed Plastic + Inner Carton

outer packing Net Weight/Set 3.7kg

Package: 4 Sets/Carton 69X45X47cm

Gross Weight/Carton 18kg
