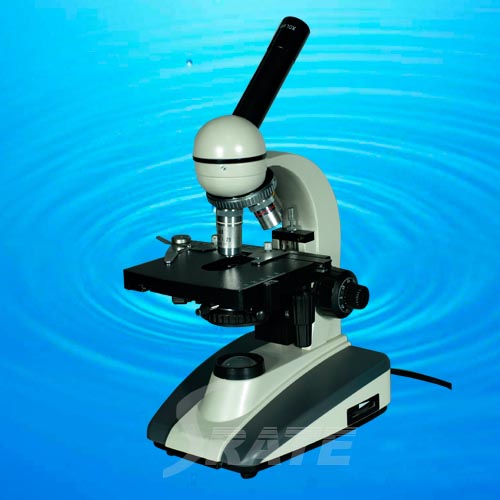

Model : TXS07-01A

---

Specifications:

eyepiece:Wide Field Plane-Scope Eyepiece: WF10X,

objectives:45mm DIN Achromatic Objective: 4X,10X,40X(S),100X(S,Oil)

Magnification:40X-1000X

viewing head Monocular Head, 45° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage:Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm,Ø2-Ø30mm Iris Diaphragm And Ø32 Filter;

condensor:ABBE Condenser: N.A. 1.25

illumination:Built-in Adjustable Brightness Halogen Lamp 6V/20W (or Incandescent, or Fluorescent, or LED

focusing:Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm



Packings:

Inner packing

Foamed Plastic + Inner Carton

outer packing

Net Weight/Set: 3.3kg

Package: 4Sets/Carton 69X45X47cm

Gross Weight/Carton: 17kg
