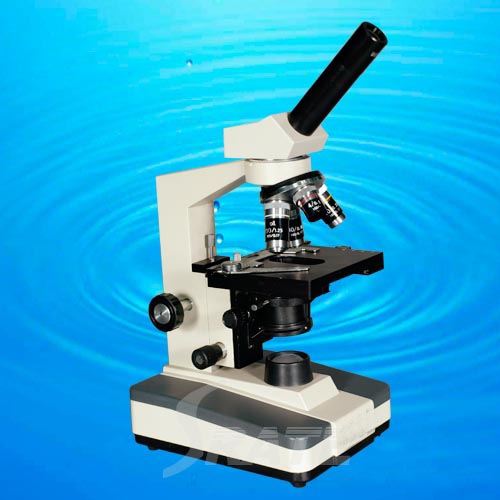

Model : TXS08-04A-RC

---

Specifications:

eyepiece: Wide Field Plane-Scope Eyepiece: WF10X,

objectives

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification:40X-1000X

viewing head:Monocular head, 45° inclined, 360° Rotatable

nosepiece:quardruple nosepiece

stage:Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor:ABBE Condenser: N.A. 1.2

Built-in LED Lamp(With a Charger and 3 Rechargeable Batteries)

focusing:Separated Coarse And Fine Focusing Adjustable Mechanism: 20mm/2mm



Packings:

inner packing:Foamed Plastic + Inner Carton

outer packing

Net Weight/Set: 4.1kg

Package: 2Sets/Carton 50X30X49cm

Gross Weight/Carton: 11kg
