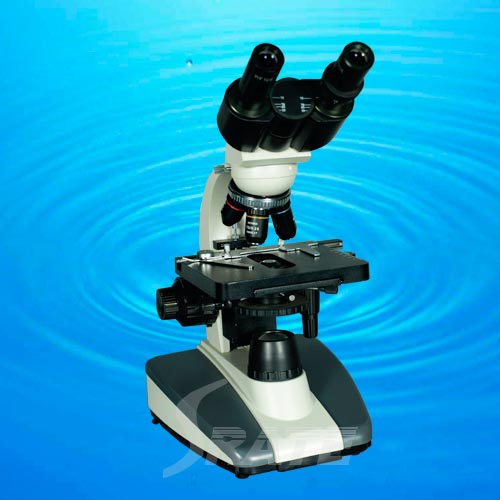

Model : TXS07-03B-RC

---

Specifications

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X, WF16X

Total Magnification: 40X-1600X

Articulated Free Binocular Head, Interpupillary Distance: 55-75mm; 30° Inclined, 360° Rotatable

Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 35mm, Precision: 0.002mm

Built-in LED Lamp(With a Charger and 3 Rechargeable Batteries)



Packings:

Net Weight/Set: 5.8kg

Package: 2 Sets/Carton 54X33X43cm

Gross Weight/Carton: 15kg
