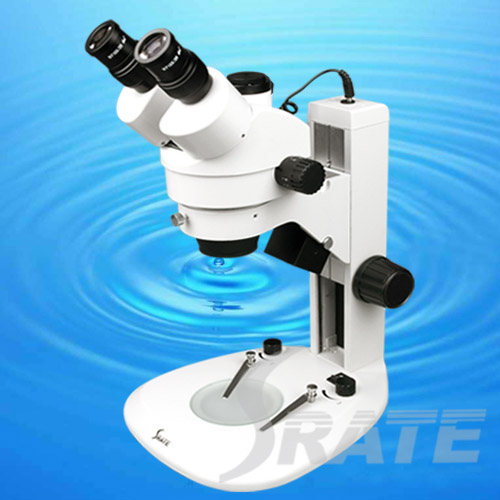

Industrial Trinocular Zoom Stereo Microscope TXB2-D7
2012-09-16 Click Times:
Specifications:
Trinocular Head Angle of viewing 45°
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Illumination Reflected and transmitted LED illumination ,Independent switch , adjustable brightness
Vertical Size 300mm
Focus diatance 100mm
Drawtube Size: 76mm
Base Size 285x238mm
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Illumination Reflected and transmitted LED illumination ,Independent switch , adjustable brightness
Vertical Size 300mm
Focus diatance 100mm
Drawtube Size: 76mm
Base Size 285x238mm
Packing:
Foamed plastic + inner carton
