Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

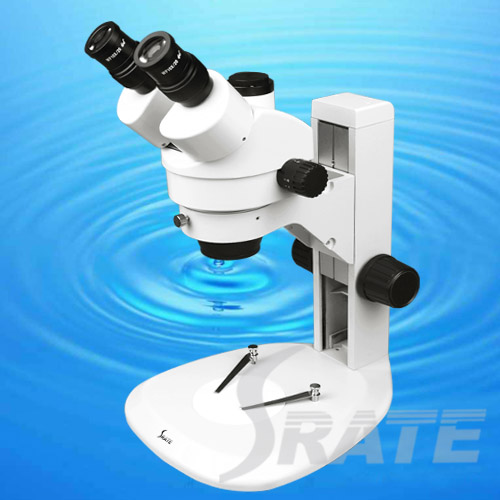

7X-45X Zoom Power Stereo Microscope TXB2-D6
2012-09-16 Click Times:
Specifications:
Trinocular Head Angle of viewing 45°
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Base with clip and 95mm black &white working board
vertical Size 300mm
Focus diatance 100mm
Drawtube Size 76mm
Base Size: 285x238mm
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Base with clip and 95mm black &white working board
vertical Size 300mm
Focus diatance 100mm
Drawtube Size 76mm
Base Size: 285x238mm
Packing:
Foamed plastic + inner carton
