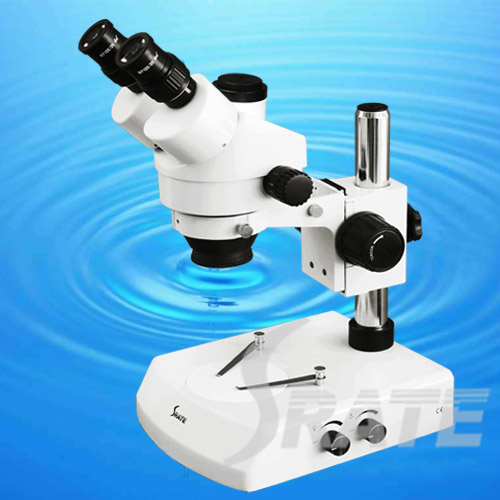

Industrial Trinocular Zoom Stereo Microscope TXB2-D3
2012-09-16 Click Times:
Specifications:
Trinocular Head Angle of viewing 45°
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Illmination Base with clip and 95mm glass board and black &white working board
Transmitted illumination2v/15w halogen lamp, adjustable brightness fluorescent lamp7w 12V/15W halogen lamp is optional
Pillar height 240mm
Diameter 32mm
Base Size 200mmx255mmx40mm
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Illmination Base with clip and 95mm glass board and black &white working board
Transmitted illumination2v/15w halogen lamp, adjustable brightness fluorescent lamp7w 12V/15W halogen lamp is optional
Pillar height 240mm
Diameter 32mm
Base Size 200mmx255mmx40mm
Packing:
Foamed plastic + inner carton
