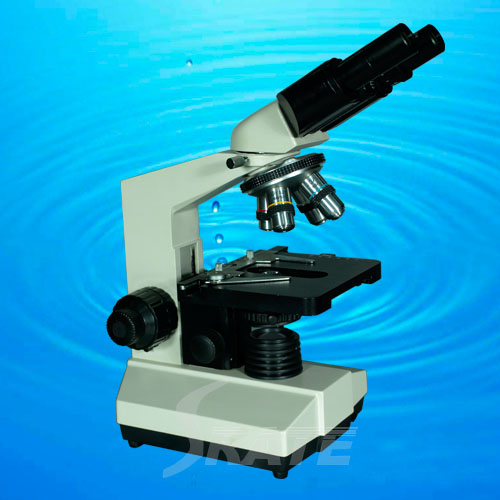

Model : TXS03-04B1

---

Specifications

eyepiece Wide Field Plane-Scope Eyepiece: WF10X, WF16X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification Total Magnification: 40X-1600X

viewing head Articulated Free Binocular Head, Interpupillary Distance: 55-75mm; 30° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

condensor Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 25mm, Precision: 0.002mm



Packings:

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 6.4kg;

Package: 1 Sets/Carton 38X34X50cm;

Gross Weight/Carton: 11kg
