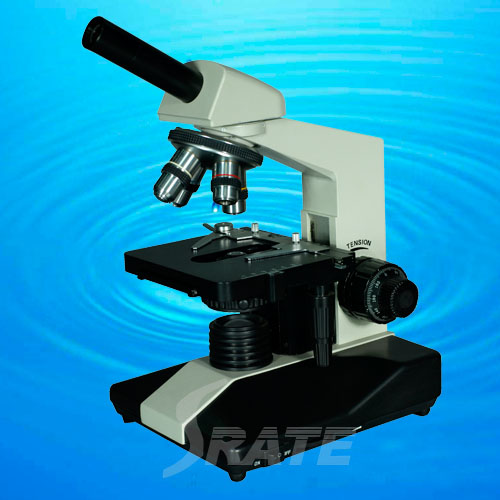

Model : TXS03-04A

---

Specification:

1) 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

2) Wide Field Plane-Scope Eyepiece: WF10X, WF16X;

3) Total Magnification: 40X-1600X

4) Monocular Head, 30 degree Inclined, 360 degree Rotatable

5) Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

6) 2-30mm Iris Diaphragm And 32 Filter;

7) ABBE Condenser: N.A. 1.25

8) Coaxial Coarse And Fine Focusing Adjustable Mechanism: 25mm,

9) Precision: 0.002mm

10) Built-in Adjustable Brightness Halogen Lamp 6V/20W;





Packing:

1) Net Weight/Set: 5.4kg;

2) Package: 1 set/carton 38x34x50cm

3) Gross Weight/Carton: 11kg
