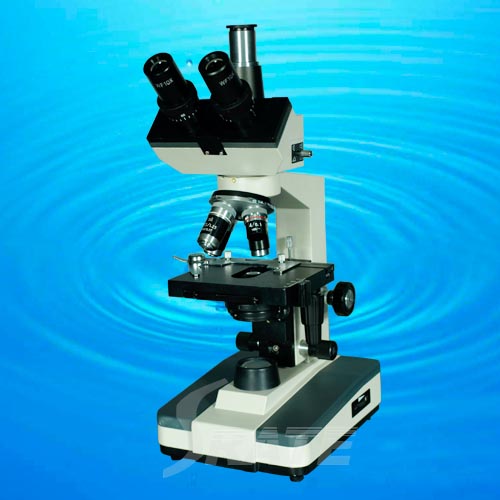

Model : TXS08-04C

---

Model: TXS08-04C

Features: 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X

Total Magnification: 40X-1000X

Sliding Trinocular Head, Interpupillary Distance: 55-75mm; 45° Inclined, 360Rotatable

Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.2

Separated Coarse And Fine Focusing Adjustable Mechanism: 20mm/2mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W



Packings:

Outer packing: Net Weight/Set: 5.4kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 14kg
