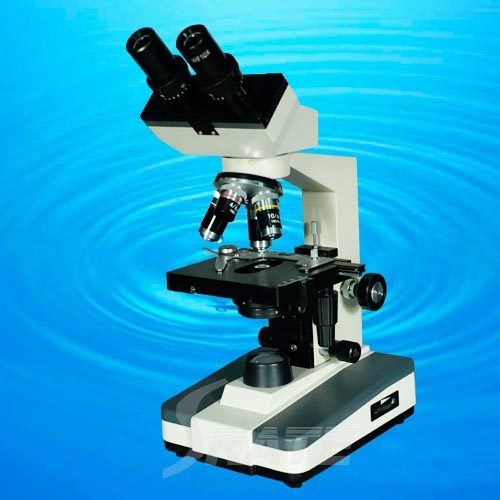

Model : TXS08-04B

---

Specifications:

model TXS08-04B-RC

eyepiece Wide Field Plane-Scope Eyepiece: WF10X;

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification Total Magnification: 40X-1000X

viewing head Sliding Binocular Head, Interpupillary Distance: 55-75mm; 45° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

condensor Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

illumination :Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent, or LED)

focusing Separated Coarse And Fine Focusing Adjustable Mechanism: 20mm/2mm



Packings

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 4.8kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 13kg
