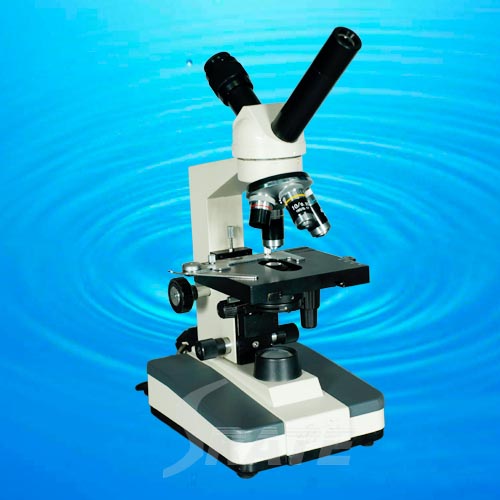

Model : TXS08-04S

---

Specifications:

1) 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

2) Wide Field Plane-Scope Eyepiece: WF10X;

3) Total Magnification: 40X-1000X

4) Dual Observation Head, 45 degree Inclined, 360 degree Rotatable

5) Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

6) 2-30mm Iris Diaphragm And 32 Filter;

7) ABBE Condenser: N.A. 1.25

8) Separated Coarse And Fine Focusing Adjustable Mechanism: 20mm/2mm

9) Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent, or LED)



Packing:

Net Weight/Set: 4kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 11kg
