Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope
High Microscope Qualitity Low Microscope Price TXB3-D5
2012-09-12 Click Times:

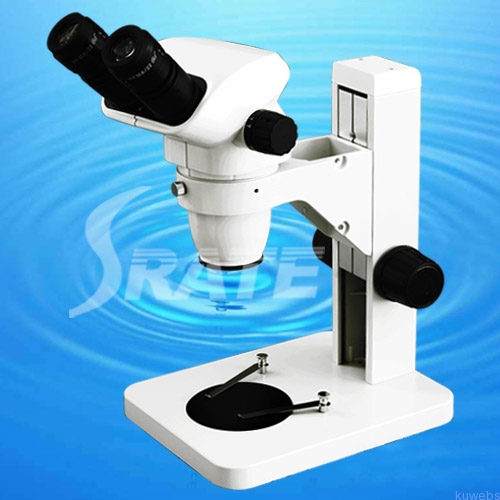

![High Microscope Qualitity Low Microscope Price TXB3-D5](http://srate.com/upload/../upload/201209/watermark/1347504838.jpg)
Specifications:
Binocular Head Angle of viewing 45°
Zoom ratio 1:6.7
Eyepiece WF10X/22mm Diopter Adjustment Eyepiece
Objective 0.67x-4.5x
Magnification 6.7x-45x
Interpupillary distance adjustment range 54-75mm
Working distance 105mm
Base with clip and 95mm glass board and black &white working board
Vertical Size 300mm
Focus distance 100mm
Drawtube Size 76mm
Base Size 200x255x22mm
Zoom ratio 1:6.7
Eyepiece WF10X/22mm Diopter Adjustment Eyepiece
Objective 0.67x-4.5x
Magnification 6.7x-45x
Interpupillary distance adjustment range 54-75mm
Working distance 105mm
Base with clip and 95mm glass board and black &white working board
Vertical Size 300mm
Focus distance 100mm
Drawtube Size 76mm
Base Size 200x255x22mm
Packing:
Foamed plastic + inner carton
