Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

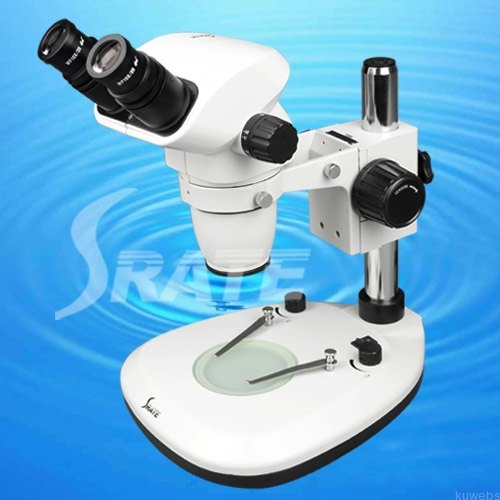

Zoom Stereo Change Steps Microscope TXB3-D4
2012-09-12 Click Times:
Specifications:
Binocular Head Angle of viewing 45°
Zoom ratio 1:6.7
Eyepiece WF10X/22mm Diopter Adjustment Eyepiece
Objective 0.67x-4.5x
Magnification 6.7x-45x
Interpupillary distance adjustment range 54-75mm
Working distance 105mm
Illumination Reflected and transmitted LED illumination, Independent switch , adjustable brightness ,Low-voltage security,small power consumption, low heat,long life
Vertical Size 240mm
Base Size 285x238mm
Zoom ratio 1:6.7
Eyepiece WF10X/22mm Diopter Adjustment Eyepiece
Objective 0.67x-4.5x
Magnification 6.7x-45x
Interpupillary distance adjustment range 54-75mm
Working distance 105mm
Illumination Reflected and transmitted LED illumination, Independent switch , adjustable brightness ,Low-voltage security,small power consumption, low heat,long life
Vertical Size 240mm
Base Size 285x238mm
Packing:
Foamed plastic + inner carton
