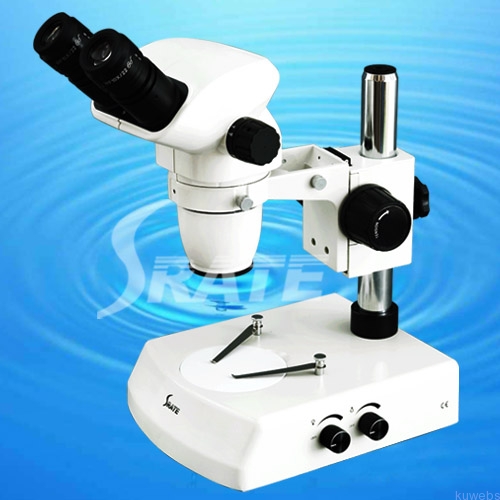

Optical Equipment Stereo Microscope TXB3-D3
2012-09-12 Click Times:
Specification:
Binocular Head Angle of viewing 45°
Zoom ratio 1:6.7
Eyepiece WF10X/22mm Diopter Adjustment Eyepiece
Objective 0.67x-4.5x
Magnification 6.7x-45x
Interpupillary distance adjustment range 54-75mm
Working distance 105mm
Illmination Base with clip and 95mm glass board and black &white working board
transmitted illumination2v/15w halogen lamp, adjustable brightness fluorescent lamp7w 12V/15W halogen lamp is optional
Pillar height 240mm
Diameter 32mm
Base Size 20mmx255mmx40mm
Zoom ratio 1:6.7
Eyepiece WF10X/22mm Diopter Adjustment Eyepiece
Objective 0.67x-4.5x
Magnification 6.7x-45x
Interpupillary distance adjustment range 54-75mm
Working distance 105mm
Illmination Base with clip and 95mm glass board and black &white working board
transmitted illumination2v/15w halogen lamp, adjustable brightness fluorescent lamp7w 12V/15W halogen lamp is optional
Pillar height 240mm
Diameter 32mm
Base Size 20mmx255mmx40mm
Packing:
Foamed plastic + inner carton
