Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

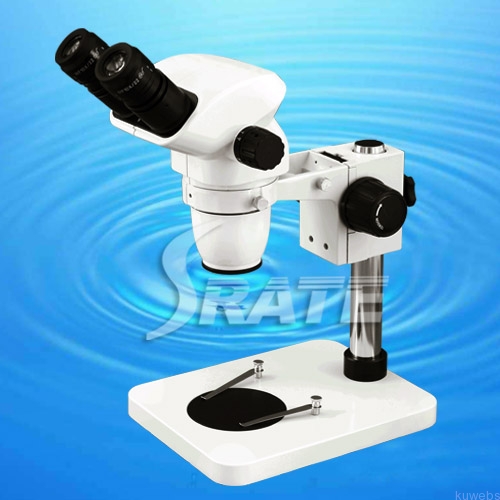

6.7x-45x Zoom Stereo Pillar Flat Base Microscope TXB3-D1
2012-09-12 Click Times:
Specification:
Binocular Head. Angle of viewing: 45°
Zoom ratio: 1:6.7
Eyepiece: WF10X/22mm Diopter Adjustment Eyepiece
Objective: 0.67X-4.5X zoom
Magnification: 6.7X-45X zoom
Interpupillary distance adjustment range: 54-75mm
Working distance: 105mm
Base with clip and 95mm black &white working board
Pillar High: 240mm
Diameter: 32mm
Base size: 200x255x22mm
Zoom ratio: 1:6.7
Eyepiece: WF10X/22mm Diopter Adjustment Eyepiece
Objective: 0.67X-4.5X zoom
Magnification: 6.7X-45X zoom
Interpupillary distance adjustment range: 54-75mm
Working distance: 105mm
Base with clip and 95mm black &white working board
Pillar High: 240mm
Diameter: 32mm
Base size: 200x255x22mm
Packing:
Foamed plastic + inner carton
