Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

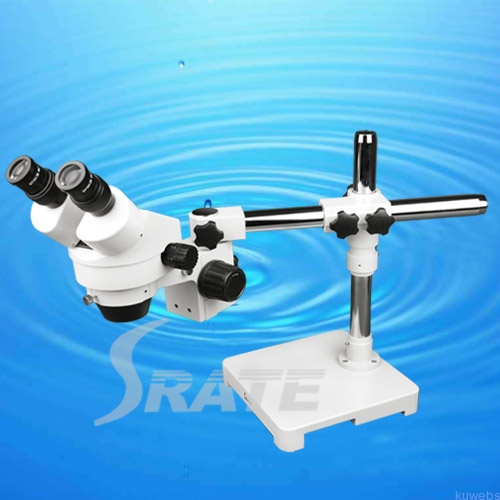

7X-45X Binocular Inspection Zoom Stereo Microscope TXB1-D9
2012-09-12 Click Times:
Specification:
Binocular Head. Angle of viewing: 45°
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective: 0.7X-4.5X zoom
Magnification: 7X-45X zoom
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective: 0.7X-4.5X zoom
Magnification: 7X-45X zoom
Interpupillary distance adjustment range: 55-75mm
Working distance: 100mm
D9 Expand the scope of operations, any orientation and angle observed the objectives
Vertical Pillar High: 38mm
Diameter: 32mm
Base: 230x230x40mm
Working distance: 100mm
D9 Expand the scope of operations, any orientation and angle observed the objectives
Vertical Pillar High: 38mm
Diameter: 32mm
Base: 230x230x40mm
Packings:
1 set/carton
Carton Meas.: 52.5x46.5x21.5cm
GW:21KGS
NW:19KGS
Previous Record: Zoom Stereo Boom Stand Microscope TXB1-D8
Next Record: Double Arm Zoom Stereo Microscope TXB1-D10
