Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

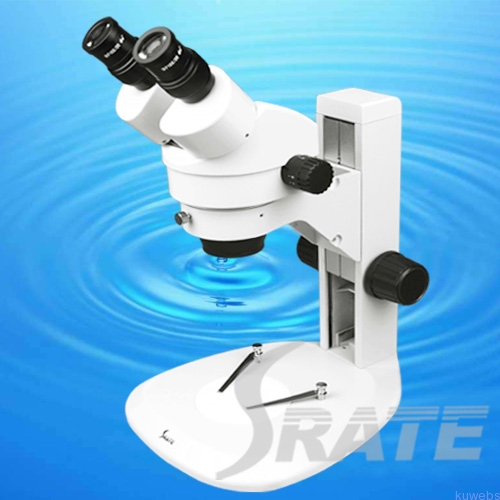

7X-45X Zoom Power Stereo Microscope TXB1-D6
2012-09-12 Click Times:
Specifications:
Binocular Head Angle of viewing 45°
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Base with clip and 95mm black &white working board
Vertical Size 300mm
Focus diatance 100mm
Drawtube Size 76mm
Base Size 285x238mm
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Base with clip and 95mm black &white working board
Vertical Size 300mm
Focus diatance 100mm
Drawtube Size 76mm
Base Size 285x238mm
Packings
Foamed plastic + inner carton
GW:4.5KGS
NW:3.5KGS
Carton size:40.5x28x43cm
1PCS/Carton
GW:4.5KGS
NW:3.5KGS
Carton size:40.5x28x43cm
1PCS/Carton
