Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

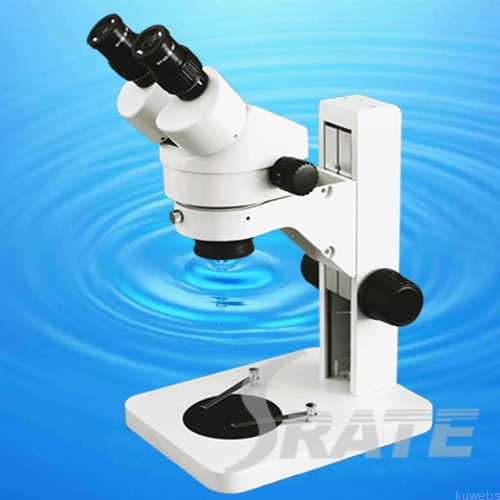

7X-45X Binocular Stereo Industrial Zoom Microscope TXB1-D5
2012-09-12 Click Times:
Specifications:
Binocular Head. Angle of viewing: 45°
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective: 0.7X-4.5X zoom
Magnification: 7X-45X
Interpupillary distance adjustment range: 55-75mm
Working distance: 100mm
Base with clip and 95mm glass board and black &white working board
Vertical Size: 300mm
Focus distance: 100mm
Drawtube Size: 76mm
Base Size: 200x255x22mm
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective: 0.7X-4.5X zoom
Magnification: 7X-45X
Interpupillary distance adjustment range: 55-75mm
Working distance: 100mm
Base with clip and 95mm glass board and black &white working board
Vertical Size: 300mm
Focus distance: 100mm
Drawtube Size: 76mm
Base Size: 200x255x22mm
Packings:
2sets/carton
Carton size: 52x29.5x42
GW:5.1KGS
NW:4.1KGS
2sets/carton
Carton size: 52x29.5x42
GW:5.1KGS
NW:4.1KGS
