Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

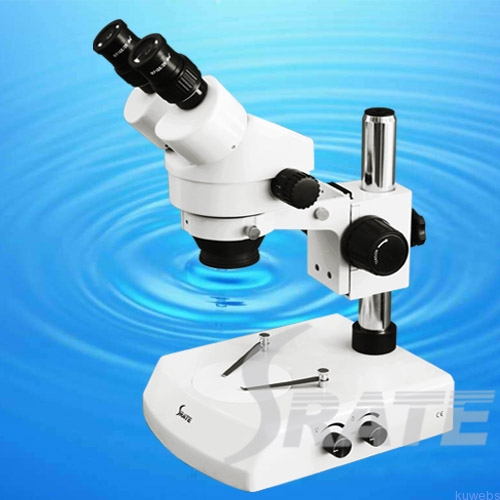

7X-45X Binocular Stereo Industrial Zoom Microscope TXB1-D3
2012-09-12 Click Times:
Specifications:
Binocular Head. Angle of viewing: 45°
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective: 0.7X-4.5X
Magnification: 7X-45X
Interpupillary distance adjustment range: 55-75mm
Working distance: 100mm
Illmination Base with clip and 95mm glass board and black &white working board
Transmitted illumination2v/15w halogen lamp, adjustable brightness fluorescent lamp7w 12V/15W halogen lamp is optional
Pillar height: 240mm
Diameter: 32mm
Base Size: 20mmx255mmx40mm
Zoom ratio: 1:6.4
Eyepiece: WF10X/20mm
Objective: 0.7X-4.5X
Magnification: 7X-45X
Interpupillary distance adjustment range: 55-75mm
Working distance: 100mm
Illmination Base with clip and 95mm glass board and black &white working board
Transmitted illumination2v/15w halogen lamp, adjustable brightness fluorescent lamp7w 12V/15W halogen lamp is optional
Pillar height: 240mm
Diameter: 32mm
Base Size: 20mmx255mmx40mm
Packings:
1set/carton
Carton size: 50x26x37
GW:8.5KGS
NW:6.5KGS
Carton size: 50x26x37
GW:8.5KGS
NW:6.5KGS
Previous Record: 7X-45X Pillar Sector Base Zoom Stereo Microscope TXB1-D2
