Home>Product>Microscope> Zoom Stereo Microscope Zoom Stereo Microscope

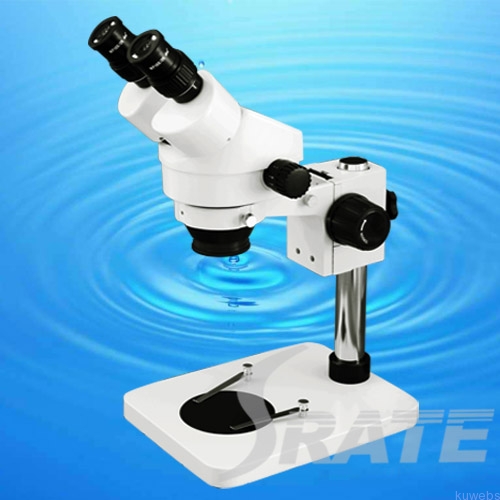

7X-45X Binocular Boom Stand Microscope TXB1-D1
2012-09-12 Click Times:
Specifications:
Binocular Head Angle of viewing 45°
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Base with clip and 95mm black &white working board
Pillar height 240mm
Diameter 32mm
Base size 200x255x22mm
Zoom ratio 1:6.4
Eyepiece WF10X/20mm
Objective 0.7x-4.5x
Magnification 7x-45x
Interpupillary distance adjustment range 55-75mm
Working distance 100mm
Base with clip and 95mm black &white working board
Pillar height 240mm
Diameter 32mm
Base size 200x255x22mm
Packing:
2sets/carton
Carton size: 50.7x40.1x41.1
GW:12.5KGS
NW:10.5KGS
