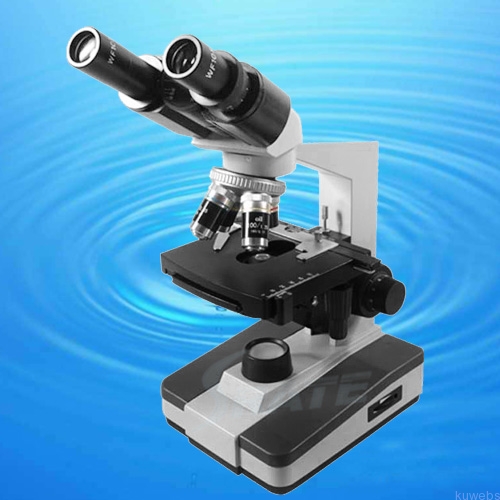

Model : TXS08-03B

---

Specifications:

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X

Total Magnification: 40X-1000X

Articulated Free Binocular Head, Interpupillary Distance: 55-75mm; 30° Inclined, 360° Rotatable

Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent, or LED)



Packings:

Net Weight/Set: 4.6kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 12kg
