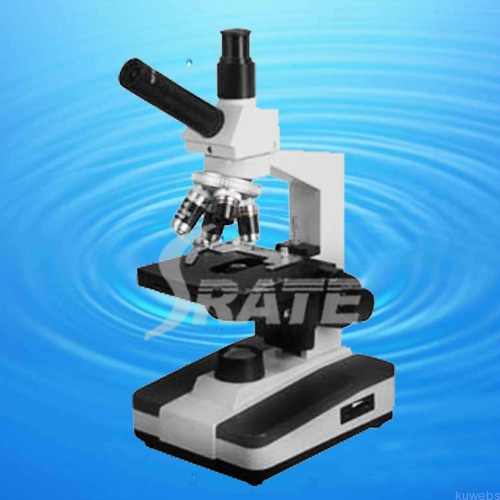

Model : TXS08-03V

---

Specifications:

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification Total Magnification: 40X-1000X

viewing head Dual Observation Head, One Tube 30° Inclined And Another Tube Vertical, 360° Rotatable

nosepiece quardruple nosepiece

stage  ouble Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm



Packings:

outer packing Net Weight/Set: 4.1kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 11kg
