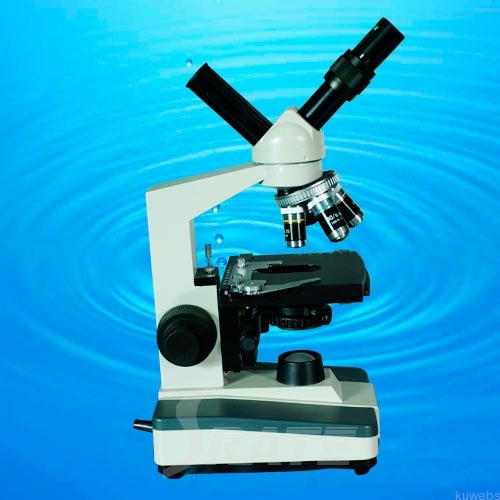

Model : TXS08-03S

---

Specifications

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification Total Magnification: 40X-1000X

viewing head Dual Observation Head, 45° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W

Coaxial coarse And Fine Focusing Adjustable Mechanism: 20mm

inner packing  Foamed Plastic + Inner Carton



Packings

outer packing Net Weight/Set: 4kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 11kg
