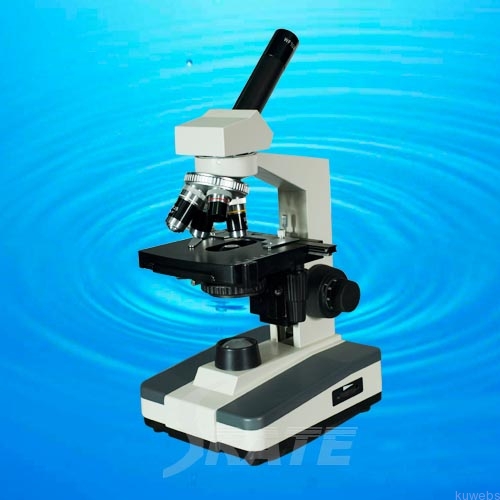

Model : TXS08-03A

---

Specifications

Wide Field Plane-Scope Eyepiece: WF10X

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Total Magnification: 40X-1000X

Monocular Head, 45° Inclined, 360° Rotatable

Quardruple Nosepiece

Double Layers Mechanical Stage: 125X130mm, Moving Range X-Y: 60X30mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W(or incandescent,or fluorescent,or LED)

"Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25"

Coaxial Coarse and  Fine Focusing Adjustable Mechanism: 20mm



Packings

Net Weight/Set: 4kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 11kg
