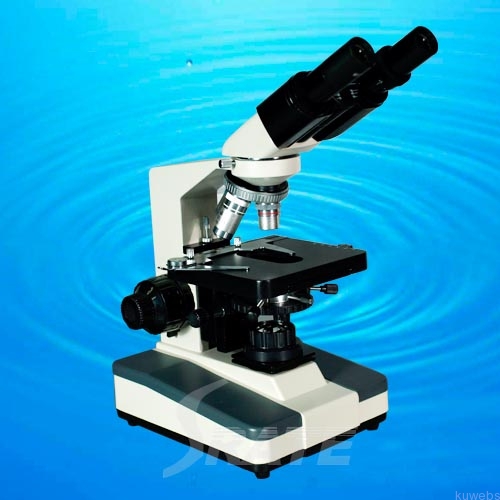

Model : TXS08-02B

---

TXS08-02B

Specifications:

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X

Total Magnification: 40X-1000X

Articulated Free Binocular Head, Interpupillary Distance: 55-75mm; 30° Inclined,

360° Rotatable

Double Layers Mechanical Stage: 130X140mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm, Precision: 0.002mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System



Packings:

Net Weight/Set: 5.6kg

Package: 2 Sets/Carton 53X37X49cm

Gross Weight/Carton: 14kg
