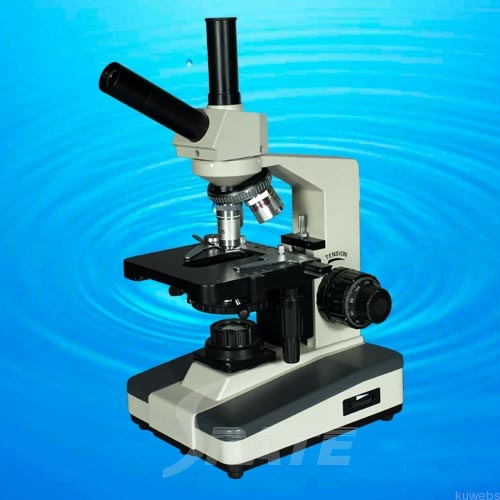

Model : TXS08-02V

---

Specifications:

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification Total Magnification: 40X-1000X

viewing head Dual Observation Head, One Tube 30°  Inclined And Another Tube Vertical, 360°  Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 130X140mm, Moving Range X-Y: 70X50mm

condensor ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm, Precision: 0.002mm



Pakings:

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set:5kg

Package: 2 Sets/Carton 53X37X49cm

Gross Weight/Carton: 13kg
