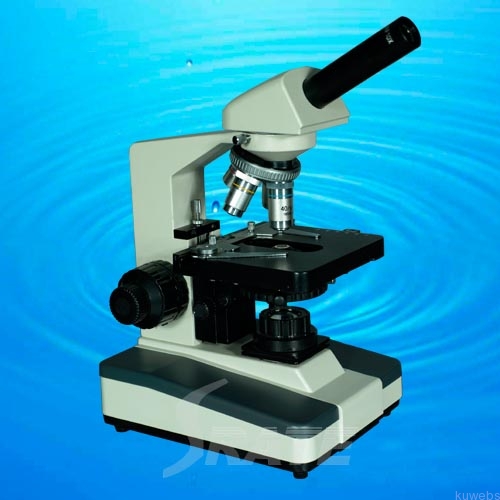

Model : TXS08-02A

---

Specifications:

eyepiece:Wide Field Plane-Scope Eyepiece: WF10X,

objectives:45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification:40X-1000X

viewing head:Monocular head, 45° inclined, 360° Rotatable

nosepiece:quardruple nosepiece

stage:Double Layers Mechanical Stage: 130X140mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor:ABBE Condenser: N.A. 1.25

illumination:Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System

focusing:Coaxial Coarse And Fine Focusing Adjustable Mechanism: 20mm, Precision: 0.002mm

inner packing:Foamed Plastic + Inner Carton



Packings:

outer packing

Net Weight/Set: 5kg

Package: 2Sets/Carton 53X37X49cm

Gross Weight/Carton: 13kg
