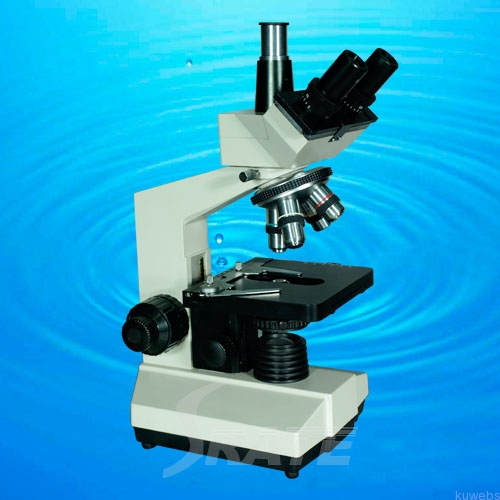

Model : TXS03-03C

---

Specifications

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X, WF16X

Total Magnification: 40X-1600X

Sliding Trinocular Head, Interpupillary Distance: 55-75mm; 45° Inclined, 360° Rotatable

Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 25mm, Precision: 0.002mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W



Packings

Net Weight/Set: 6.4kg;

Package: 1 Sets/Carton 38X34X50cm;

Gross Weight/Carton: 11.5kg
