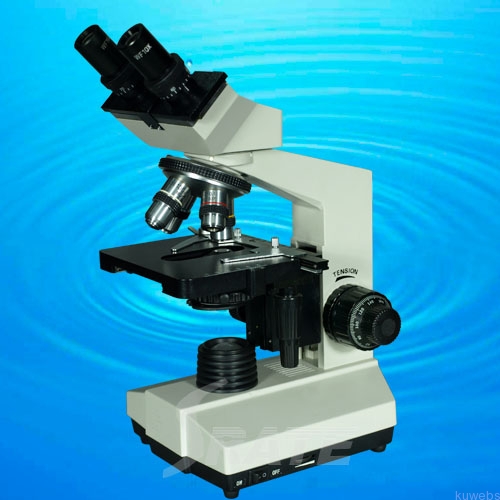

Model : TXS03-03B

---

Specifications:

Wide Field Plane-Scope Eyepiece: WF10X, WF16X

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Total Magnification: 40X-1600X

Sliding Binocular Head, Interpupillary Distance: 55-75mm; 45° Inclined, 360° Rotatable

Quardruple Nosepiece

Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

"Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25"

Built-in Adjustable Brightness Halogen Lamp 6V/20W

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 25mm, Precision: 0.002mm



Packings:

Net Weight/Set: 6.4kg;

Package: 1 Sets/Carton 38X34X50cm;

Gross Weight/Carton: 11kg
