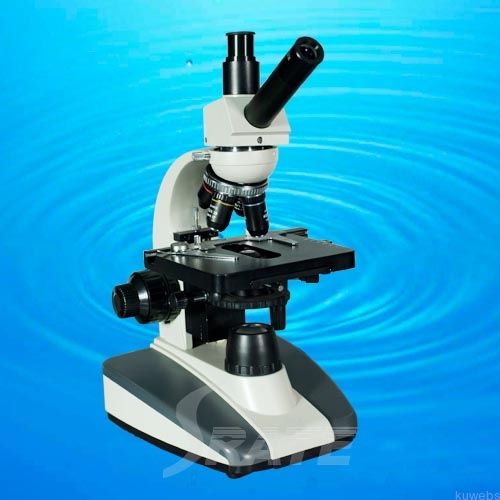

Model : TXS07-03V

---

model TXS07-03V

eyepiece Wide Field Plane-Scope Eyepiece: WF10X, WF16X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification Total Magnification: 40X-1600X

viewing head Dual Observation Head, One Tube 30° Inclined And Another Tube Vertical, 360° Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 35mm, Precision: 0.002mm



Packings:

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 5.3kg

Package: 2 Sets/Carton 54X33X43cm

Gross Weight/Carton: 14kg
