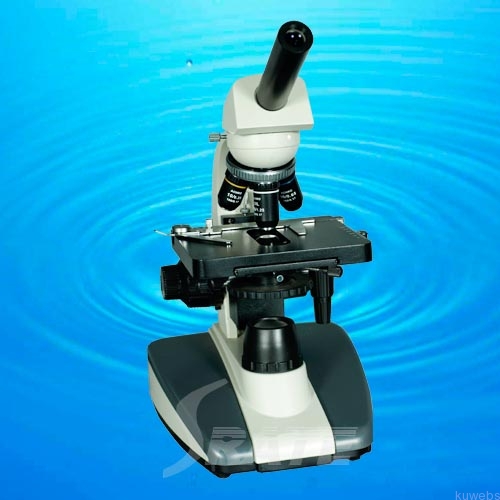

Model : TXS07-03A

---

TXS07-03A

Specifications

eyepiece:Wide Field Plane-Scope Eyepiece: WF10X,

objectives:45mm DIN Achromatic Objective: 4X,10X,40X(S),100X(S, Oil)

Magnification:40X-1600X

viewing head:Monocular Head, 45° Inclined, 360° Rotatable

nosepiece:quardruple nosepiece

stage:Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor:ABBE Condenser: N.A. 1.25

illumination:Built-in Adjustable Brightness Halogen Lamp 6V/20W

focusing

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 35mm, Precision: 0.002mm



Packings:

inner packing

Foamed Plastic + Inner Carton

outer packing

Net Weight/Set: 5.2kg

Package: 2Sets/Carton 54X33X43cm

Gross Weight/Carton: 14kg
