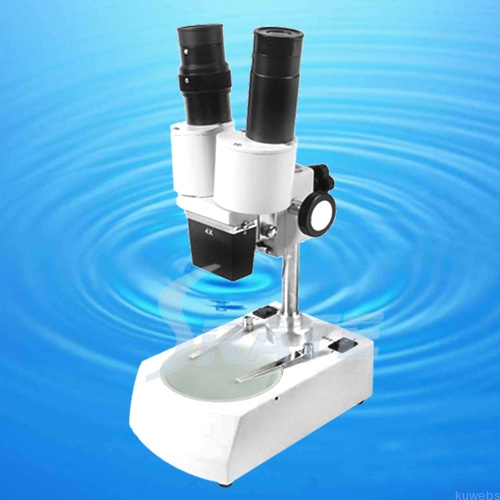

Stereo Microscope with Top and Bottom Lamps TX-1C
2012-09-10 Click Times:
Specifications:
1) Paired Sliding Objectives 1X, or 2X, or 3X, or 4X for Selecting,
2) Working Distance:1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm
3) Wide Field Plane-Scope Eyepiece: WF10X, WF15X(Optional)
3) Wide Field Plane-Scope Eyepiece: WF10X, WF15X(Optional)
4) Total Magnification: 10X, or 20X, or 30X, or 40X (15X, or 30X, or 45X, or 60X)
5) Straight Articulated Free Binocular Head, Interpupillary Distance: 55-75mm;
6) Illumination: Top/ Bottom Light: 12V/10W Halogen Lamp, with 95mm Frosted Glass Stage
Plate
7) Rack and Pinion Coarse Focusing Mechanism With Slip Clutch and Tension Adjustment
Plate
7) Rack and Pinion Coarse Focusing Mechanism With Slip Clutch and Tension Adjustment
Packings:
1) Net Weight/Set: 2.1kg;
1) Net Weight/Set: 2.1kg;
2) Gross Weight/Carton: 10kg
