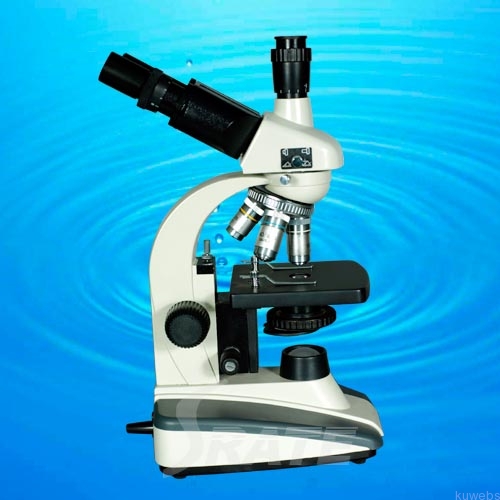

Model : TXS07-02C

---

Specifications

Model: TXS07-02C

Features: 45mm DIN Achromatic Objective: 4X, 10X, 40X(S)100X( S,Oil)

Wide Field Plane-Scope Eyepiece: WF10X

Total Magnification: 40X-1000X

Articulated Free Trinocular Head, Interpupillary Distance: 55-75mm; 30° Inclined, 360° Rotatable

Plain Stage With Paired Clips: 120X125mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

Separated Coarse And Fine Focusing Adjustable Mechanism: 20mm/2mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W



Packings:

Outer packing: Net Weight/Set: 4.5kg

Package: 4 Sets/Carton 69X45X47cm

Gross Weight/Carton: 21kg
