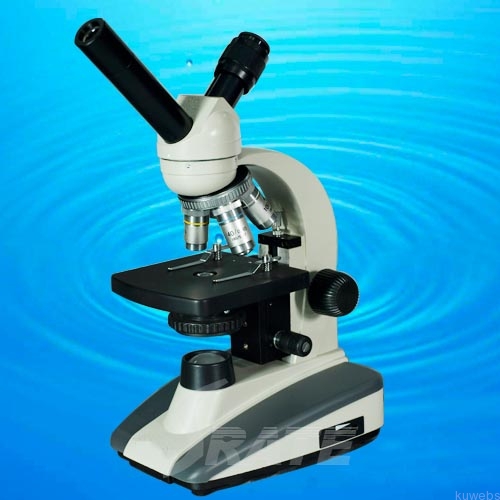

Model : TXS07-02S

---

Specifications:

model TXS07-02S

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S),100X(S,Oil)

Magnification 40X-1000X

viewing head Dual Observation Head, 45° Inclined, 360° Rotatabl

nosepiece quardruple nosepiece

stage Plain Stage With Paired Clips:120X125mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent, or LED)

focusing Separated Coarse And Fine Focusing Adjustable Mechanism: 20mm/2mm



Packings:

inner packing Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 3.7kg

Package: 4 Sets/Carton 69X45X47cm

Gross Weight/Carton: 17kg
