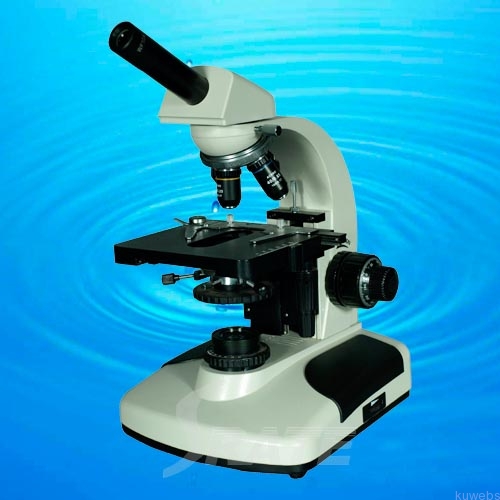

Model : TXS06-02A

---

Specifications:

eyepiece:Wide Field Plane-Scope Eyepiece: WF10X,WF16X

objectives:45mm DIN Achromatic Objective: 4X,10X,40X(S),100X(S,Oil)

Magnification:40X-1600X

viewing head:Monocular head, 30° inclined, 360° Rotatable

nosepiece:quardruple nosepiece

stage:Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor:ABBE Condenser: N.A. 1.25

illumination:Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System

focusing:Coaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm, Precision: 0.002mm



Packages:

inner packing:Foamed Plastic + Inner Carton

Outer packing

Net Weight/Set: 6kg

Package: 1Sets/Carton 42X31X52cm

Gross Weight/Carton: 8.5kg
