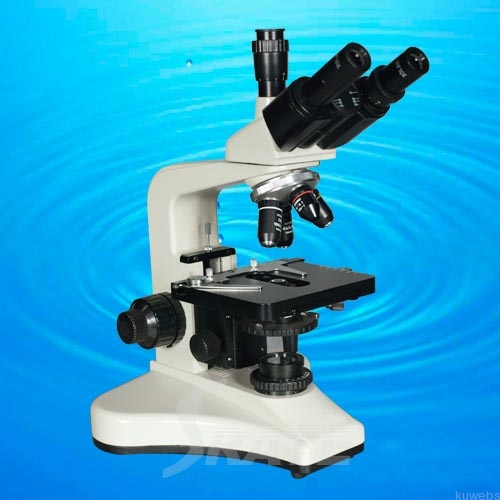

Model : TXS10-01C

---

Specifications:

Model TXS10-01C

Features 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X,WF16X

Total Magnification: 40X-1600X

Articulated free trinocular head, Interpupillary distance:55-75mm; 30° Inclined, 360° Rotatable

Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25,

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm, Precision:0.002mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System



Packings

Inner packing Foamed Plastic + Inner Carton

Outer packing Net Weight/Set: 7kg
