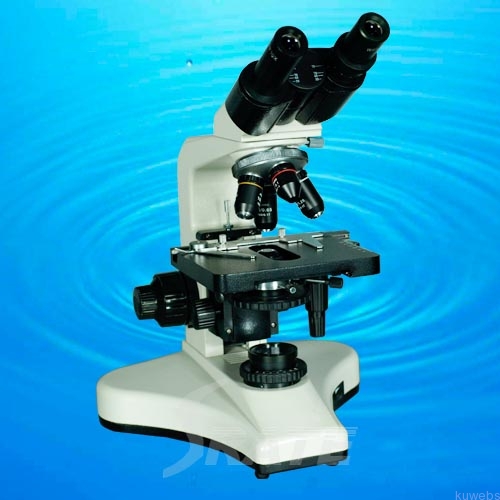

Model : TXS10-01B

---

TXS10-01B

Specifications:

45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X, WF16X

Total Magnification: 40X-1000X

Articulated free binocular head, Interpupillary distance:55-75mm; 30° Inclined, 360° Rotatable

Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

Coaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm, Precision:0.002mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System



Packings:

Net Weight/Set: 6.8kg

1 Sets/Carton 42X35X52cm

Gross Weight/Carton: 9.3kg
