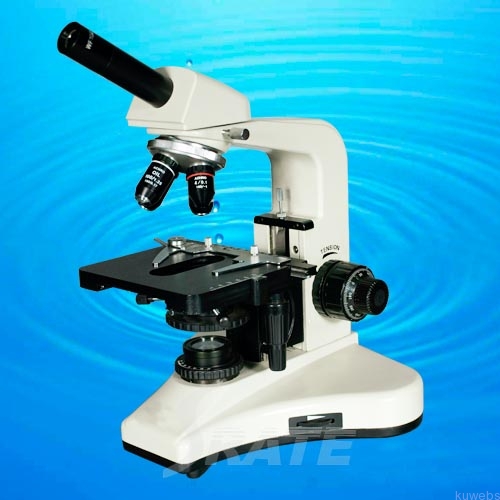

Model : TXS10-01A

---

model:XS10-01A

eyepiece:Wide Field Plane-Scope Eyepiece: WF10X,WF16X

objectives:5mm DIN Achromatic Objective: 4X,10X,40X(S),100X(S,Oil)

Magnification:0X-1600X

viewing head:onocular head, 30° inclined, 360° Rotatable nosepiece

quardruple nosepiece

stage :Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor:BBE Condenser: N.A. 1.25

illumination:uilt-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System

CoaxialCoarse and Fine Focusing Adjustable Mechanism:14mm

focusing:oaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm, Precision: 0.002mm



Packings

inner packing

Foamed Plastic + Inner Carton

outer packing

Net Weight/Set: 6.4kg
