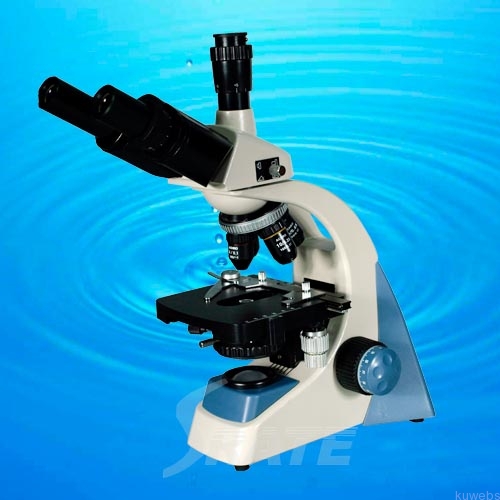

Model : TXS11-01C

---

Specifications

Model TXS11-01C

Features 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Wide Field Plane-Scope Eyepiece: WF10X

Total Magnification: 40X-1000X

Articulated free trinocular head, Interpupillary distance: 55-75mm; 30°Inclined, 360° Rotatable

Double Layers Mechanical Stage: 125X125mm, Moving Range X-Y: 60x40mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

Separated Coarse And Fine Focusing Adjustable Mechanism: 14mm

Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent,or LED)



Packings

Inner packing Foamed Plastic + Inner Carton

Outer packing Net Weight/Set: 4.3kg

Package: 2 Sets/Carton 50X34X49cm

Gross Weight/Carton: 10.5kg
