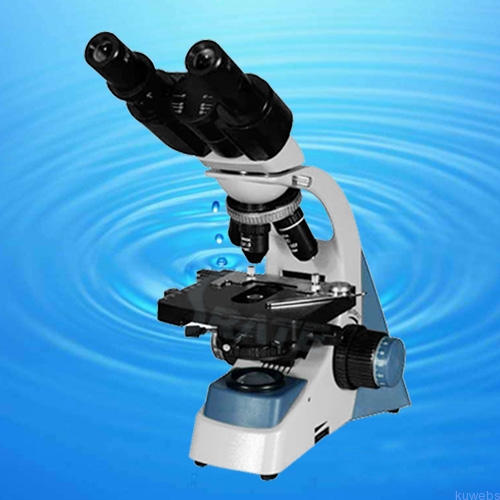

Model : TXS11-01B

---

Specifications:

1) Model :TXS11-01B

2) Eyepiece :Wide Field Plane-Scope Eyepiece: WF10X

3) Objectives: 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

4) Magnification :40X-1000X

5) Viewing head :Articulated free binocular head, Interpupillary distance: 55-75mm; 30° Inclined, 360° Rotatable

6) Nosepiece: quardruple nosepiece

7) Stage Double Layers Mechanical Stage: 125X125mm, Moving Range X-Y: 60X40mm

8) Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

9) Condensor ABBE Condenser: N.A. 1.25

10) Illumination: Built-in Adjustable Brightness Halogen Lamp 6V/20W

11) Focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 14mm



Packings:

1) Inner packing Foamed Plastic + Inner Carton

2) Outer packing Net Weight/Set: 4kg

3) Package: 2 Sets/Carton 44X37X47cm

4) Gross Weight/Carton: 10kg
