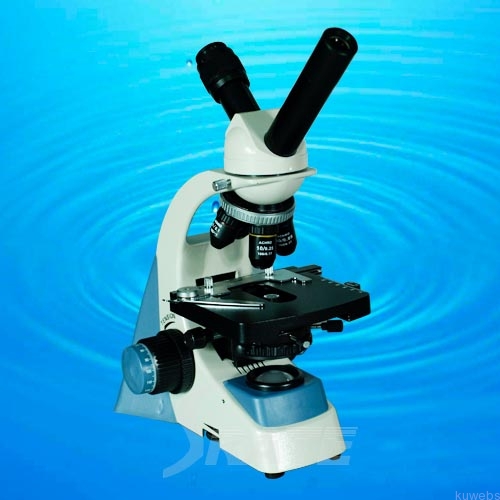

Model : TXS11-01S

---

Specifications:

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)

Magnification 40X-1000X

viewing head Dual Observation Head, 45° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 125X125mm, Moving Range X-Y: 60X40mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination

Built-in Adjustable Brightness Halogen Lamp 6V/20W(or Incandescent, or Fluorescent,or LED)

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 14mm



Packings:

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 3.5kg

Package: 2 Sets/Carton 44X37X47cm

Gross Weight/Carton
