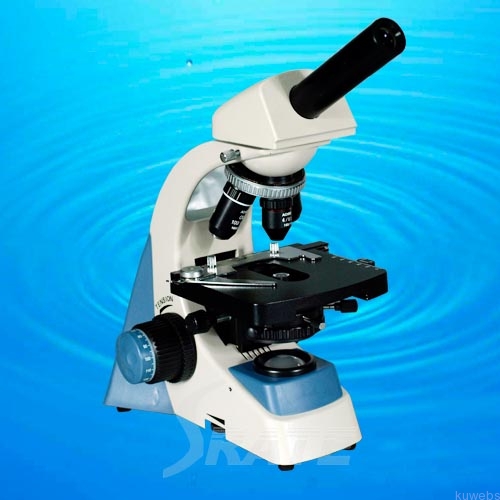

Model : TXS11-01A

---

Specifications:

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X,10X,40X(S),100X(S,Oil)

Magnification 40X-1000X

viewing head Monocular head, 30° inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Double Layers Mechanical Stage: 125X125mm, Moving Range X-Y: 60X40mm

Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

condensor ABBE Condenser: N.A. 1.25

illumination Built-in Adjustable Brightness Halogen Lamp 6V/20W

(or Incandescent, or Fluorescent,or LED)

focusing CoaxialCoarse and Fine Focusing Adjustable Mechanism:14mm



Packings:

Inner packing  Foamed Plastic + Inner Carton

Outer packing Net Weight/Set: 3.1kg

Package: 2 Sets/Carton 44X37X47cm

Gross Weight/Carton: 8kg
